Novel fluidic processor offers switchable capture and release

While the ability to precisely capture and release various chemical and biological fluids plays a fundamental role in many fields, it has been a longstanding challenge to design a platform that enables the switchable capture and release of liquids with precise spatial and temporal control.

Researchers at The Hong Kong Polytechnic University (PolyU) recently developed a novel fluidic processor, dubbed ‘connected polyhedral frames’ (CPFs), to overcome this challenge. Their work was led by Professor Liqiu Wang and has been described in the journal Nature Chemical Engineering.

Unlike in the highly developed area of solids manipulation, convenient handling of fluids remains a cumbersome task despite the ubiquity of fluids in, for example, the healthcare, pharmaceutical, biological and chemical industries. As fluids interact with tools, they frequently wet and spread on the solids, preventing complete liquid transfer, impairing volumetric accuracy and causing inter-sample cross contamination. To preserve the purity of fluids, disposable plastics such as pipettes and microtubes are widely used, adding to the global problem of plastic waste.

Reversible switching between capture and release is the key to CPFs’ capability to precisely process liquids, enabling the liquid in the network to be retained or drained locally, dynamically and reversibly as desired. In the CPFs, frames above the single-rod connection without a pathway for liquid drainage capture and retain liquids, thus functioning as capturers, whereas the frames above the double-rod connection imbibe but release liquids, serving as releasers. This is because when the CPFs are lifted from the liquid, a liquid film forms between the double-rod connections, creating channels between frames that facilitate liquid release.

Reversible switching between capture and release can be achieved, using available tools, by constructing or breaking the liquid continuity between frames. CPFs thus offer a versatile platform that enables functions including 3D programmable patterning of liquids, 3D spatiotemporal control of concentrations of multiple materials, packaging of 3D liquid arrays and large-scale manipulation of multiple liquids. It is compatible with a broad range of liquids, including aqueous solutions, biofluids, hydrogels, organic solvents, polymer solutions and oils. Therefore, a variety of biomaterials and chemicals can be incorporated into CPFs for various applications.

To demonstrate the practical utility of CPFs in controlled multidrug release, Wang’s team designed a CPF network for the 3D binary liquid patterning of vitamins B2 and B12. The two vitamins, representing two different types of drug molecules, were encapsulated in sodium alginate hydrogel and gellan gum, respectively, and released in aqueous solution. By altering the thickness of the gel membrane, the relative release rates of the two ‘drugs’ can be precisely controlled.

Traditional cotton swabs and flocking swabs suffer from severe sample residues during their sample release. CPFs can effectively overcome this challenge because their frame structure renders free liquid–liquid interfaces for high release efficiency. Using the influenza virus as an example, the research team demonstrated the superiority of CPFs as sampling tools with much better release performance. When the virus concentration was low, the CPFs detected the virus, while both the flocking swab and cotton swab failed to do so.

The team has also demonstrated the application of CPFs in biomaterial encapsulation. Taking Acetobacterium encapsulation as an example, the CPFs show many advantages over traditional devices, including by facilitating the separation of bacteria and reaction products, simplifying the microbial reaction process and enhancing the utilisation rate of bacteria. It is conceivable that CPF could also be applied to encapsulate other biological materials for efficient production of other valuable products.

In addition to medical and microbial applications, Wang’s team has further demonstrated the practicability of CPFs for air-conditioning. They prepared a commercial-scale humidifier prototype which has a higher water storage capacity and requires less water flow, making it potentially more energy efficient. The CPFs also allow large-scale 3D liquid dispersion to form a larger surface area, making them useful for gas absorption. An ideal CO₂ cycle process is successfully generated with CPFs, which includes carbon capture and storage and CO₂ reutilisation.

Importantly, each frame in CPFs captures or releases liquids independent of its base materials, structures and handled liquids; this makes it an innovative meta-metamaterial that makes the dream of ‘scooping water with a bamboo basket’ come true. It is hoped that the availability of such a fluidic processor will set a new standard for handling liquids with controllability, versatility and high performance; inspire a new field of meta-metamaterials; and facilitate new scientific and technological breakthroughs in various fields.

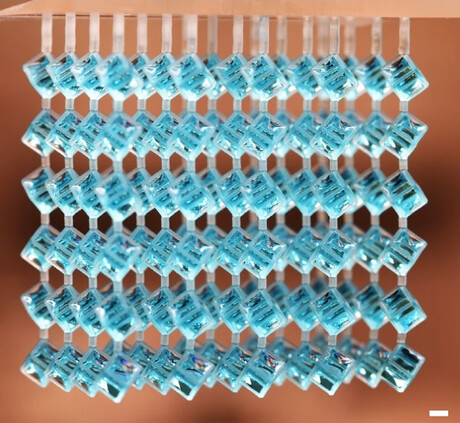

Image caption: The 3D liquid array is prepared using a capturer array (scale bar = 2 mm). Image has been cropped from the original and is courtesy of the study authors under CC BY 4.0
