How plant leaves ensure optimal area for photosynthesis

An international team of researchers, led by Dr Emanuele Scacchi and Professor Marja Timmermans from the University of Tübingen, have discovered which genetic mechanisms control leaves’ growth into a flat structure capable of efficiently capturing sunlight, which they need for photosynthesis. The team’s results have been published in the journal Nature Plants.

“When cells divide and multiply, the result is usually a clump of cells,” Scacchi said. “We wanted to know how, in the case of a leaf, cell division leads to a large flat area.”

To this end, a team of mathematicians and experimental biologists worked together to track the processes using computer models, methods of molecular genetics and imaging techniques on living organisms. Scacchi explained, “The basis of such pattern formation is polarity; that is, the ability to distinguish, in this case, between top and bottom. It is usually created by a concentration gradient of a substance, called morphogen, that is low on one side and higher on the other.”

The team discovered that ‘small RNAs’ play a decisive role in controlling the growing leaf. As mobile messengers, they are used for communication between the cells and help the cells to perceive their relative position to each other in the structure — like a GPS. In addition, the small RNAs transmit information that coordinates which genes need to be activated or inhibited on the top and bottom side to give the leaf the right shape and function.

“This regulatory mechanism works autonomously in the growing leaf; there is no central control in the plant,” Timmermans said. “We noticed that our results correspond to a theory that Alan Turing put forward more than seven decades ago. Although he is best known for his contributions to computer science, he also dealt with the mysteries of nature.”

Turing suggested that simple interactions between certain molecules in the cells of living things can lead to the formation of complex patterns, such as the spots on a leopard’s coat or the stripes on a zebra. Timmermans said, “He described these processes mathematically in his theory of morphogenesis. Our new study builds on this theory. We have discovered a mechanism controlled by small RNAs that corresponds to Turing’s concept of pattern formation via self-organisation.”

In this case, self-organisation refers to the genetically controlled behaviour of the cells, which behave in unison like a flock of birds, forming a collective behaviour to create the correct pattern and flat structure of a leaf. Each bird in the flock responds to the movements of its neighbours, and although there is no leader, the collective interactions create a coherent, organised pattern.

“The small RNA molecules in the cells of the growing leaf set in motion a genetic process that enables the cells to perceive and interpret their environment,” Scacchi said. The genes’ activities are coordinated among the cells in such a way that each leaf is divided in a sharply defined top and bottom part that form a perfectly flat canvas for photosynthesis. Such a self-organising Turing mechanism can adapt gene activity to internal and external disturbances during leaf development, such that leaf shape can be uniform, despite drastic changes in the environment.

“In addition, this genetic system offers many opportunities for fine-tuning,” Scacchi said. “This explains a diversity of leaf shapes observed in nature, from the simple tendril of a climbing plant to the complex pitcher in some carnivorous plants.”

“Our discovery is not only important because it adds a new chapter to Turing’s legacy,” Timmermans said. “We have decoded the basic mechanisms by which small RNAs enable self-organising genetic processes. Now we can explore how humans can modify and harness these biological functions. With a growing global demand for food, we need optimised crops with high yields that are robust against stress factors such as global warming.”

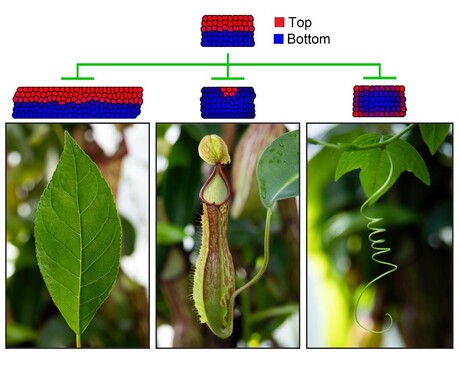

Image caption: This series of simulations examines a leaf section to reveal how minor variations in gene interactions can lead to distinct spatial patterns of gene activity. These differences between the top (red) and bottom (blue) parts may determine the ultimate shape of the leaf. Left: Illustrates a typical flat leaf maintaining a stable bipolar gene activity pattern. Centre: Shows a leaf with a shifted polarity, resulting in a structure akin to that seen in the specialised morphology of carnivorous plants. Right: Displays a loss of polarity, where a radial gene activity pattern contributes to the formation of tendril-like features, common in climbing plants.
