HIV's sugary shield imaged in detail

Scientists from The Scripps Research Institute and Los Alamos National Laboratory have devised a method for mapping in unprecedented detail the thickets of slippery sugar molecules that help shield HIV from the immune system.

Mapping these shields will give researchers a more complete understanding of why antibodies react to some spots on the virus but not others, and may shape the design of new vaccines that target the most vulnerable and accessible sites on HIV and other viruses. The method has been published in the journal Proceedings of the National Academy of Sciences.

The sugar molecules, or ‘glycans’, are loose and stringy, and function as shields because they are difficult for antibodies to grip and block access to the protein surface. The shields form on the outermost spike proteins of HIV and many other viruses, including SARS-CoV-2, because these viruses have evolved sites on their spike proteins where glycan molecules — normally abundant in cells — will automatically attach.

The same wavy flexibility that makes these sugary molecules resistant to antibodies has also made them impossible for researchers to capture with traditional atomic-scale imaging. Now, scientists have developed techniques that allow these elusive molecules to be mapped in great detail on the surface of the HIV spike protein, known as ‘Env’.

“We now have a way to capture the full structures of these constantly fluctuating glycan shields, which to a great extent determine where antibodies can and can’t bind to a virus such as HIV,” said lead author Dr Zachary Berndsen, a postdoctoral research associate in the structural biology lab of Scripps Research Professor Andrew Ward.

The Scripps Research team collaborated with the lab of Dr Gnana Gnanakaran at Los Alamos National Laboratory, which is equipped with high-performance computing resources that enabled fresh approaches for modelling the glycans. There, the researchers combined an atomic-scale imaging method called cryo-electron microscopy (cryo-EM) with sophisticated computer modelling and a molecule-identifying technique called site-specific mass spectrometry.

Cryo-EM relies on averaging tens or hundreds of thousands of individual snapshots to create a clear image, thus highly flexible molecules like glycans will appear only as a blur, if they show up at all. But by integrating cryo-EM with the other technologies, the researchers were able to recover this lost glycan signal and use it to map sites of vulnerability on the surface of Env.

“This is the first time that cryo-EM has been used along with computational modelling to describe the viral shield structure in atomic detail,” said Dr Srirupa Chakraborty, co-lead author and postdoctoral researcher in the Gnanakaran lab.

The combined approach revealed the glycans’ structure and dynamic nature in extreme detail and helped the team better understand how these complex dynamics affect the features observed in the cryo-EM maps. From this wealth of information, the team observed that individual glycans do not just wiggle around randomly on the spike protein’s surface, as once was thought, but instead clump together in tufts and thickets.

“There are chunks of glycans that seem to move and interact together,” Dr Berndsen said. “In between these glycan microdomains is where antibodies apparently have the opportunity to bind.”

Experimental HIV vaccines rely on modified, lab-made Env proteins to elicit antibody responses. In principle, these vaccines’ effectiveness depends in part on the positioning and extent of the shielding glycans on these lab-made viral proteins. Dr Berndsen and colleagues applied their method to map the glycans on a modified HIV Env protein, BG505 SOSIP.664, which is used in an HIV vaccine currently being evaluated in clinical trials.

“We found spots on the surface of this protein that normally would be covered with glycans but weren’t — and that may explain why antibody responses to that site have been noted in vaccination trials,” Dr Berndsen said.

That finding and others showed that Env’s glycan shield can vary depending on what type of cell is being used to produce it. In HIV’s infections of humans, the virus uses human immune cells as factories to replicate its proteins. But viral proteins used to make vaccines normally are produced in other types of mammalian cells.

In another surprise discovery, the team observed that when they used enzymes to slowly remove glycans from HIV Env, the entire protein began to fall apart. Dr Berndsen and colleagues suspect that Env’s glycan shield, which has been considered merely a defence against antibodies, may also have a role in managing Env’s shape and stability, keeping it poised for infection.

The team expect that their new glycan-mapping methods will be particularly useful in the design and development of vaccines — and not only for HIV. Many of the techniques can be applied directly to other glycan-shielded viruses such as influenza viruses and coronaviruses, and can be extended to certain cancers in which glycans play a key role.

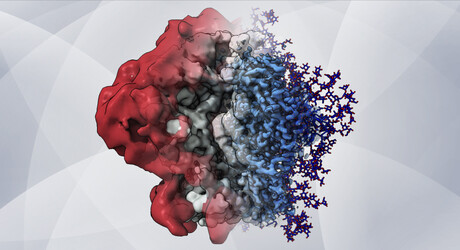

Image caption: An artistic rendering — based on cryo-EM maps and computer simulations — shows how glycans create a shield that helps HIV hide from the immune system. Image courtesy of Zachary Berndsen, Ward lab at Scripps Research.
