Modernising therapeutic cell production challenges dogma and terminology

Cell and gene therapies are dominating the world of drug development. With the promise of significant breakthroughs in treatment of diabetes, cancer and congenital conditions, it is no wonder that research and development is predicted to reach $232.5 billion by 2026, up from $186 billion in 2019 according to the Evaluate Pharma report.

With so much at stake, attention is now shifting to adopting more modern equipment and methods to consistently produce the best cells. At the core of this trend is replacing outdated legacy manufacturing techniques where cells are exposed to air, even if meticulously filtered air, and the negative consequences of that. It is a simple-sounding concept.

Since the beginning, Good Manufacturing Practices (GMP) have been based on the use of cleanrooms and isolators. However, the industry is moving toward superior alternatives that accomplish what any air environment cannot: better protection of cells from both microbial contamination and chemical toxicity, and better control of the universal critical cell process parameters — temperature, CO₂ and O₂. The key is closure, another simple-sounding concept.

Without closure and separation from air, even highly filtered air, protection from microbial contamination in cleanrooms and traditional isolators is dependent on the liberal use of gaseous and liquid chemical microbial biocides. However, they are toxic to the cells too.

In GMP you must prove they are not harming your cells, which takes tremendous effort. Even then, it is impossible since the damage is often insidious.

In addition, emerging science tells us exposure to air, even short exposure, can degrade genotypic and phenotypic integrity and contribute to variability in cell populations. It causes suboptimal transients of those three critical cell process parameters. Yet this is the norm in cleanrooms and traditional isolators.

If cells are produced in a more favourable environment, you get better cells, both in terms of the number and consistency of cells produced as well as their therapeutic potency. For these reasons, moving away from legacy facilities, equipment and practices is essential for advancing cell-based therapies.

Single-use technology

One only needs to read the industry news to see where it is headed. Take the popularity of pre-sterilised, single-use systems (SUS), which have exploded in use. Keeping cells aseptic inside a pre-sterilised bag, bag/tube assembly or cassette is easy. There is less cleaning and virtually no biocide needed. Add to that the productive functionality of their associated mechanical devices, including up to full automation, and it explains why these closed SUS devices are a dominant trend in modernisation.

Some are uni-function SUS devices, designed for one step in production (eg, cell separation). Some are multi-function SUS devices that do several steps (eg, cell washing and dilution). Some actually do all the steps in production, and are fully automated (toti-function SUS devices). One of the most commercially successful is toti-function SUS devices designed for automated production of CAR-T cell cancer therapies. Although limited to one specific process, these are truly modern marvels.

However, they don’t necessarily produce the best or most cells. Recent comparability studies from the NIH show surprising results (Song H, Shao L, Prochazkova M, et al 145, ‘Comparison of CAR-T cell manufacturing platforms reveals distinct phenotypic and transcriptional profiles’, The Journal for ImmunoTherapy of Cancer 2021). Although the exposure to air is assumed to be minimal, it is not clear how well exposures to suboptimal transients of the critical process parameters temperature, CO₂ and O₂ are avoided. Other variables inherent to each fixed SUS platform might also be suboptimal and significantly influence the final cell product.

This is the challenge with standardised live cell process automation. Whether it is one step, a few steps or all the steps in production, an automated process that doesn’t degrade one kind of cell may degrade others. Automating too early in development is a risk. Only clinical trials can tell if the cell product works. Developers need flexibility until clinical trials prove successful, and canned automation is not usually flexible.

In development, only comparability studies can tell if a process change, such as automation, improves or hurts product quality. Thus uni-function SUS devices and multi-function SUS devices impose less risk because they do not automate the entire process, but then upstream and downstream steps may still be left exposed to air.

Despite the runaway commercial success of automated toti-function SUSs, the obvious upfront limitation is that most cell production processes do not fit in these devices. Even if one does fit, will that cell product be clinically effective, or will non-obvious inherent limitations compromise the potency? Certain CAR-Ts are effective, thankfully, but the verdict is still out with other cells.

New category challenges dogma and terminology

Alternatives are starting to appear that achieve all the objectives: complete closure, complete avoidance of air, and virtually no limits or constraints upfront or over time. Some are difficult to describe because they do it in a different way. One example is a modular closed system.

Unlike closed SUS devices, the modular closed system is not constrained to any particular process but can accommodate entire cell production processes — large or small, simple or complex, centralised or distributed, manual or automated.

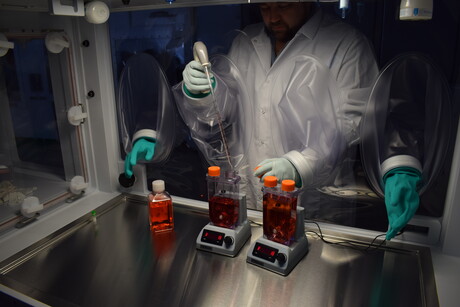

With interconnected glove chambers, from the outside it looks like an isolator. However, looks don’t tell the whole story. Isolator dogma brings with it preconceived notions: HVAC connections, filtered air blowing through, thick heavy gloves, etc. Like a modern automobile, you really have to look under the hood to find out if it is old gas or new electric.

Unlike any other isolator, the system is very configurable with plug-and-play modularity. It assembles from a comprehensive library of modular chambers, co-chambers and sub-chambers, interconnecting in all different ways to efficiently close by form and fit around the workflow of any different entire production process, including all analytic, processing and automation equipment.

Cell production often consists of many widely diverse steps. Technicians or industrial robotic arms use the gloves from the outside for manual or man-mimetic robotic steps, or for tending to the equipment or automation inside. However, in the context of producing high-quality cells by avoiding contamination and toxic chemicals, it is more comparable to SUSs.

It is not a SUS of any kind, but like a SUS it makes aseptic cell production easy. Instead of ease with pre-sterilised disposables, it self-sanitises the entire internal production environment automatically without risky biocides. No biocides may sound like heresy according to GMP dogma, but it works, and the data trumps the dogma. In this regard it could also be called a next-generation isolator, or Cytocentric isolator.

Instead of air inside, it is filled with a mix of pure N₂, O₂ and CO₂ gases from tanks. CO₂ and O₂ can be controlled at optimal levels for cells throughout the system, just like an incubator or bioreactor. Temperature can also be controlled, just like an incubator or bioreactor.

By eliminating the fluctuations and transient exposures to suboptimal temperature, CO₂ and O₂ usually caused by all the typical exposures to air in cleanrooms or traditional isolators, you always get cells with better consistency and quality.

Notably, most stem cells and primary cultures fresh from the patient do best at low O₂ levels, which simulate normal physiologic levels. In fact, it is the only cell manufacturing platform that can optimise this critical parameter at every step of production, simultaneously with physiologic CO₂ and temperature. However, where necessary, you can simulate air without air, inert with 100% nitrogen, or chill down to refrigerator temperatures.

Compared to cleanrooms, it reduces facility costs by 90% when you look at total cost of ownership at equivalent production capacity over the facility life cycle. Extremely low operating cost is the game changer, although many forget to factor that into future facility cost estimates.

When you do, it brings cGMP cell production within reach of even the smallest companies. Combine that with the speed and flexibility of deployment, multi-modal capability due to closure, easy path to regulatory approval due to closure, reduction in the risks and high quality of the live cell products, and it is next generation regardless of what you call it.

*Randy Yerden is a cell biologist and CEO of New York-based BioSpherix, a designer and manufacturer of cell incubation, processing and production systems.
