A miniature laboratory in a plastic bag

Fraunhofer researchers have developed an all-in-one system in the form of a transparent bag that provides a cheap, fast and sterile way for scientists to grow, differentiate and freeze stem cells. It is believed that the cell models produced in the ‘LabBag’ can be used for toxicity tests and drug development.

Scientists worldwide are looking for ways to heal diseases using stem cells, which offer the potential to develop new types of therapies and drugs. Stem cell material also holds the key to researching diseases in a way that was not possible before. However, if researchers are to achieve meaningful and transferable results, there must be an increase in the cell material to be examined. In addition, the latest studies show that 3D cell models reflect the conditions in the human body much more accurately — and the generation of these cell aggregates takes place primarily under sterile conditions in droplet-shaped nutrient solutions.

Now, the Fraunhofer Institute for Biomedical Engineering IBMT, the Fraunhofer Institute for Surface Engineering and Thin Films IST, and the Fraunhofer Institute for Process Engineering and Packaging IVV have pooled their expertise to develop a miniature laboratory in the form of a plastic bag. Inside this bag, human induced pluripotent stem cells — in other words, artificially produced stem cells — are able both to grow and to form 3D aggregates in a sterile environment. These cells can be used by the pharmaceutical industry as patient- or disease-specific test systems for drug development and research into active ingredients.

Hanging droplets without manual pipetting

Until now, stem cell aggregates have been generated by using pipette feeder robots — which are expensive to purchase and maintain — or by means of manual pipetting, which is labour- and time-intensive. Manual pipetting in petri dishes requires a lot of practice, and there is also the risk of contamination.

The ‘laboratory in a bag’ developed by the Fraunhofer researchers aims to reduce the costs of labour and materials while also significantly increasing cell yield and process reliability. Simply by shaking the transparent bag, it takes just a few seconds to produce several hundred hanging droplets of nutrient solution, virtually automatically. The droplets function as mini bioreactors in which cell aggregates are able to form.

First, the nutrient solution containing the stem cells is poured into the bag. The bag is rotated once and then returned to its initial position. During this process, the droplets remain suspended on round hydrophilic spots. The cells sink to the bottom of the droplets, where they bind together and fuse to form a defined 3D aggregate.

“We have coated the polymer film of the bag with two different coatings,” explained Dr Michael Thomas, project manager and scientist at Fraunhofer IST, whose team is responsible for the coating of the polymer film. “A hydrophobic, water-repellent base layer ensures that the nutrient solution containing proteins flows over the surface and doesn’t stick to it. However, the second layer consists of 150 hydrophilic round spots, each with a diameter of 5 mm. The solution gets ‘caught’ on these spots, thus creating the droplets.”

©Fraunhofer IST

To functionalise the surface of the film in such a specific way, the researchers make use of atmospheric pressure plasma processes. In this method, physical plasma is generated in a gas gap between two electrodes by applying alternating voltage. This plasma is then used to treat the surfaces of a wide variety of materials.

The resulting cell models can even be frozen in the bag — unlike with manual pipetting, where material must be transferred into a separate cryogenic vessel. The cryopreservation process — that is, the freezing of cells — falls within the remit of Fraunhofer IBMT, which is additionally responsible for growing stem cells and for characterising and analysing the 3D aggregates.

“We are focusing on growing induced pluripotent stem cells (iPS), since these have the potential to develop into any cell in the body as well as into any tissue or specific type of tissue,” said Dr Julia Neubauer, a biologist at Fraunhofer IBMT. “Unlike embryonic stem cells, they don’t provoke any ethical controversies either.”

Stem cells become specialised in their shape and capabilities so as to accomplish certain tasks, and this makes it possible to develop patient-specific drugs. Dr Neubauer and her colleagues are focusing on the differentiation into heart muscle cells, and have actually already differentiated iPS cells into cells of this type successfully.

High-quality 3D cell models in 72 hours

Every drop has a volume of approximately 20 µL, and the size of the 3D cell model is around 400 µm. By varying the diameter of the spot on the surface of the bag, the size of the aggregates can be adjusted so as to achieve a targeted expansion of the biological portfolio. At present, Dr Neubauer and her team need roughly 72 hours to produce aggregates in hanging droplets

“We describe our LabBag as a mini GMP laboratory — where ‘GMP’ is short for ‘good manufacturing practice’, for which it meets all the requirements. The closed, sterile nature of the system makes the risk of contamination very small. Ultimately, we can produce better cell models for drug research and thereby avoid experiments on animals,” Dr Neubauer said. The team plans to integrate sensors for controlling the process.

Fraunhofer IVV and its branch lab were responsible for creating the bag. They took charge of the choice and development of the materials used, including the seal, as well as of designing the bag and its underlying technology.

“We conducted a lot of tests relating to issues such as permeability, the quality of microscopic analysis, biocompatibility, and resistance to temperature and chemicals,” said Dr Cornelia Stramm, a scientist at Fraunhofer IVV. “After all that, we decided on polymer films. Previously we had identified 15 groups of polymers, and we examined eight of these.”

“The list of requirements for the LabBag was very demanding,” added Andrea Liebmann, from the branch lab. “It needed to be highly transparent and adequately retain its shape; it had to be sealable and stackable; it needed to be capable of being sterilised and undergoing cryogenic freezing. The bag also had to offer single-handed operation (self-opening) and good accessibility for the exchange of nutrient solutions. To satisfy these high requirements, we developed a partially automated test rig to produce the bags.”

The mini GMP laboratory thus offers the pharmaceutical industry — as well as smaller laboratories with no clean room technology — the opportunity to grow high-quality cell models for drug research without incurring high investment costs. Since it is cost-efficient to make the LabBag, it represents an attractive alternative to traditional approaches.

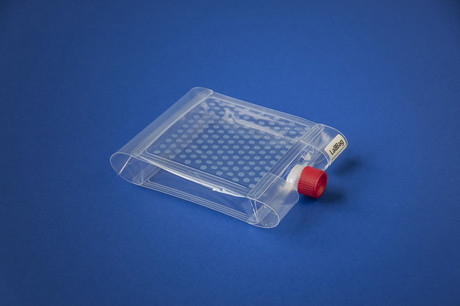

Top image caption: The mini laboratory is 150 mm long, 120 mm wide and 20 mm high. The screw cap is made using 3D printing. Hydrophilic spots are visible on the upper interior surface of the bag. ©Fraunhofer IST
